Used for transfer of variety of industrial liquids such as: -
- All types of petroleum fluids like Diesel, Crude Oil, Lubricating Oil, Furnace Oil, etc
- All types of Vegetable Oils, Fish & Animal Oil, Mineral Oils, etc
- All types of liquids that solidify at room temperature like Asphalt, Bitumen, Furnace Oil, Tar, Cellulose, Starch, Naphtha, etc
- All types of viscous, non viscous, thick and thin fluids like Paints, Varnish, Turpentine, Grease etc
- All types of juices, pulps, foams, sugar and soap solutions, fire-fighting Applications, etc
- All types of chemicals and liquids used in Pharma Applications
- All types of Loading, Unloading and Transfer Applications
Design Highlights / Features
- Top quality, industry standard
- Lesser number to gear teeth to reduce friction losses
- En-24, gas nitride hardened gears
- Higher efficiency range as compared to regular make gear pumps
- Much lesser noise as compared to regular make gear pumps
- Pumps come in complete S.S. Body as well
- Pumps come in self lubrication models as well
- Pumps come in Jacketed models for liquids that solidify at room temperature
- Special mechanical seals available for high temperature and leak proof

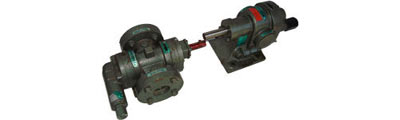

Technical data of Gear Pumps
Note : Due to continuous changes towards product improvement, technical data is subject to change.
| Pumps Size Range | 0.25 Inches to 6 inches |
| Discharge range | 5 LPM to 3300 LPM |
| Viscosity Range | Up to 1,00,000 CST |
| Temp Range | Up to 200 Degree C |
| Pressure / Head Range | Up to 35 Bar / 350 Meters |
| Weight Range | Up to 200 kgs |
| Lubrication properties | Independent or Self |
| Gears | Single and Twin Helical |
| MOC | Cast Iron, Stainless Steel, Polypropylene |
Note : Due to continuous changes towards product improvement, technical data is subject to change.
Rotodel Ltd, Bonnie-tech Ltd, Apex Ltd, Ropar Ltd.
